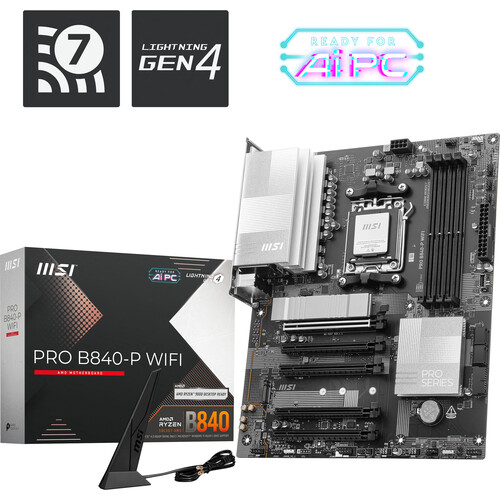

MBO MSI PRO B840-P WIFI AM5 ATX Form Factor AMD B840 Chipset AM5 Socket 4 x Dual-Channel DDR5-8000…

MBO MSI PRO B840-P WIFI AM5 Chipset AMD B840 CPU Socket AM5 Memory Slots 4x 288-Pin Memory Support DDR5 MT/s Storage Slots 1x M.2 (M Key) 2260, 2280 (PCIe 4.0 x4) 1x M.2 (M Key) 2260, 2280, 22110 (PCIe 4.0 x4, PCIe 3.0 x4, PCIe 3.0 x2) Expansion Slots 1x PCIe 4.0 x16 1x PCIe 3.0 x4 3x PCIe 3.0 x1 Wi-Fi Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) Form Factor ATX CPU Chipset AMD B840 CPU Socket AM5 Back Panel I/O USB 1x USB-C (USB 3.1/3.2 Gen 2) 1x USB-A (USB 3.1/3.2 Gen 2) 4x USB-A (USB 3.0 / 3.1/3.2 Gen 1) 2x USB-A (USB 3.0 / 3.1/3.2 Gen 1) Thunderbolt No Display 1x HDMI Audio 3x 1/8″ / 3.5 mm Ethernet / Controller No Wi-Fi Antenna 2x Connector Buttons BIOS Flashback, Clear CMOS Memory Memory Slots 4x 288-Pin Memory Support DDR5 MT/s Maximum Capacity 256 GB Channel Architecture Dual Channel ECC Support Non-ECC Unbuffered Storage Expansion SATA 4x SATA III Storage Slots 1x M.2 (M Key) 2260, 2280 (PCIe 4.0 x4) 1x M.2 (M Key) 2260, 2280, 22110 (PCIe 4.0 x4, PCIe 3.0 x4, PCIe 3.0 x2) RAID Support RAID 0, 1, 10 (SATA) Internal I/O Expansion Slots 1x PCIe 4.0 x16 1x PCIe 3.0 x4 3x PCIe 3.0 x1 USB 1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port) 2x USB 2.0 Header (Supports 4 USB-A Port) Air Cooling 1x 4-Pin CPU 4x 4-Pin System Liquid Cooling 1x 4-Pin Pump Power Connectors 1x 24-Pin Mainboard 1x 8-Pin ATX Security Chassis Intrusion LED Header 7x RGB BIOS ROM 256 Mb Front Panel I/O Front Panel I/O AAFP Audio Audio Codec Realtek ALC897 (7.1-Channel) DAC No Wireless Wi-Fi Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) Bluetooth 5.4 Software OS Compatibility Windows Physical Form Factor ATX Dimensions 9.6 x 12″ / 243.8 x 304.8 mm Kategori: Komponente PC, Motherboard
