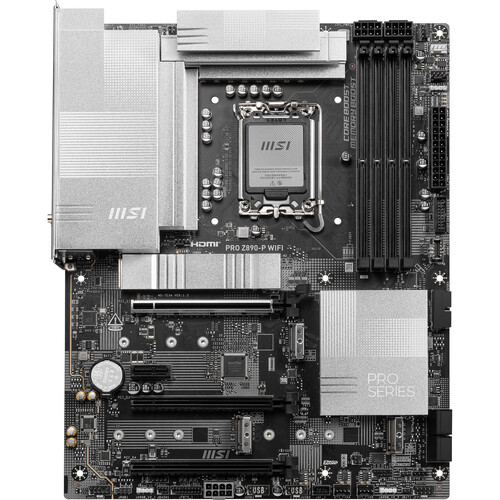

MBO MSI PRO Z890-P WIFI Key Features ATX Form Factor Intel Z890 Chipset LGA 1851 Socket 4 x Dual-Channel DDR5-9200 (OC) 4 x SATA | M.2 PCIe 5.0 | M.2 PCIe 4.0 PCIe 5.0 x16 | PCIe 4.0 x16/x4 & x16/x1 Thunderbolt 4 | USB 3.2 Gen 1, 2 & 2.0 Wi-Fi 7 | Bluetooth 5.4 | 5GbE Realtek 7.1-Channel Audio Windows 11 (64-Bit) Compatible MSI Z890-P WiFi Specs Key Specs Chipset Intel Z890 CPU Socket LGA 1851 Memory Slots 4x 288-Pin Memory Support DDR5 4800, 4866, 4933, 5000, 5066, 5100, 5133, 5200, 5300, 5333, 5400, 5600, 5800, 6000, 6133, 6200, 6400, 6600, 6666, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200, 8266, 8400, 8600, 8800, 8933, 9066, 9200 MT/s Show More Storage Slots 1x M.2 (M Key) 2260, 2280 (PCIe 5.0 x4) 1x M.2 (M Key) 2260, 2280, 22110 (PCIe 4.0 x4) 1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4) 1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4, SATA III) Show More Expansion Slots 1x PCIe 5.0 x16 2x PCIe 4.0 x16 (x4 mode) 1x PCIe 4.0 x16 (x1 mode) Wi-Fi Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support Form Factor ATX CPU Chipset Intel Z890 CPU Socket LGA 1851 Back Panel I/O USB 1x USB-C (USB 3.1/3.2 Gen 2) 1x USB-A (USB 3.1/3.2 Gen 2) 2x USB-A (USB 3.0 / 3.1/3.2 Gen 1) 4x USB-A (USB 2.0) Thunderbolt 1x Thunderbolt 4 Display 1x HDMI 2.1 1x DisplayPort 1.4 Audio 3x 1/8″ / 3.5 mm Ethernet / Controller 1x Realtek 8126 5GbE PS/2 1x PS/2 Wi-Fi Antenna 2x Connector Buttons BIOS Flashback Memory Memory Slots 4x 288-Pin Memory Support DDR5 4800, 4866, 4933, 5000, 5066, 5100, 5133, 5200, 5300, 5333, 5400, 5600, 5800, 6000, 6133, 6200, 6400, 6600, 6666, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200, 8266, 8400, 8600, 8800, 8933, 9066, 9200 MT/s Maximum Capacity 256 GB Channel Architecture Dual Channel ECC Support Non-ECC Unbuffered Storage Expansion SATA 4x SATA III Storage Slots 1x M.2 (M Key) 2260, 2280 (PCIe 5.0 x4) 1x M.2 (M Key) 2260, 2280, 22110 (PCIe 4.0 x4) 1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4) 1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4, SATA III) Optane Memory Support No RAID Support RAID 0, 1, 5, 10 (M.2) RAID 0, 1, 5, 10 (SATA) Internal I/O Expansion Slots 1x PCIe 5.0 x16 2x PCIe 4.0 x16 (x4 mode) 1x PCIe 4.0 x16 (x1 mode) USB 1x USB 3.2 Gen 2×2 Header (Supports 1 USB-C Port) 2x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 4 USB-A Port) 2x USB 2.0 Header (Supports 4 USB-A Port) Air Cooling 1x 4-Pin CPU Liquid Cooling 1x 4-Pin Pump Power Connectors 1x 24-Pin Mainboard 2x 8-Pin CPU 1x 8-Pin ATX Security Chassis Intrusion, TPM Header LED Header 4x RGB Audio No Diagnostics Clear CMOS, Flash BIOS Add-On 1x Thunderbolt Card Header Front Panel I/O Front Panel I/O AAFP, USB 2.0, USB 3.0 / 3.1/3.2 Gen 1, USB 3.2 Gen 2×2 Audio Audio Codec Realtek ALC897 (7.1-Channel) DAC No Wireless Wi-Fi Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support Bluetooth 5.4 Module Support 1 E Key M.2 Software OS Compatibility Windows 11 (64-Bit Only) Physical Form Factor ATX Dimensions 12.0 x 9.60″ / 304.8 x 243.84 mm Kategori: Komponente PC, Motherboard
Motherboard
