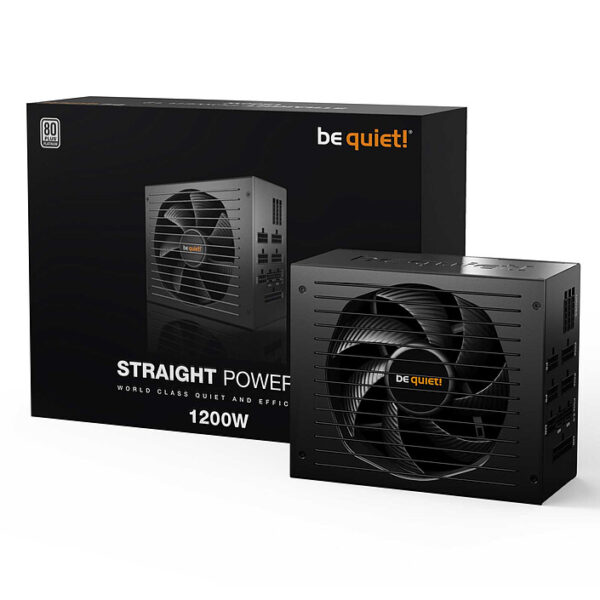

PSU 1200W 80 PLATINUM BE QUIET! STRAIGHT POWER 12 be quiet! Straight Power 12: Ultimate silence for exceptional performance The be quiet! Straight Power 12 is a future-proof 100% modular ATX 3.0 power supply with 80 PLUS Platinum certification, near-inaudible operation with its Silent Wings fan and PCIe 5.0 compatibility.Its reliability makes it an ideal choice for all users looking for a reliable power supply to set up their configuration with a recent graphics card. Key features 80 PLUS Platinum certification (up to 93.7%) ATX 3.0 power supply fully compatible with PCIe 5.0 graphics cards and those with 6 2 pin connectors Capable of handling very high transient load variations Ultra-quiet 135 mm Silent Wings fan Full bridge / LLC technology for unrivalled signal stability Solid 12V rail 105°C Japanese capacitors for maximum stability and reliability DC-side wireless design for improved cooling and component longevity Modular cable management 2 PCIe 5.0 12VHPWR 600 W slots and 4 PCIe 6 2 pin slots for high-end and overclocked graphics cards General data Model Straight Power 12 1200W Continuous power (W) 1200 Peak power (W) 1270 Form factor Version 3.0 Form factor EPS 12V Version 2.92 Topology Full bridge LLC SR DC/DC Digitally controlled – Voltage (Vac) 110 – 240 Frequency (Hz) 50 – 60 Input current (A) 15 / 7.5 Power factor at 100% load >0.99 Modern standby ✓ Power consumption in standby (W) 0.14 Average life time (h / 25°C) >100,000 Operating temperature up to (°C) 40 Infographics Efficiency 80 PLUS certification Platinum Efficiency (%) at 230V, 2% load 65.0 Efficiency (%) at 230V, 10% load 89.0 Efficiency (%) at 230V, 20% load 93.1 Efficiency (%) at 230V, 50% load 93.7 Efficiency (%) at 230V, 100% load 92.4 Fan and cooling technology Cybenetics Noise Rating – Fan Silent Wings Fan size (mm) 135 Bearing technology FDB Motor technology 6-pole fan motor Max. fan speed (rpm) 2600 dB(A) at 10% load 9.4 dB(A) at 20% load 9.4 dB(A) at 50% load 9.8 dB(A) at 100% load 32.2 Output Multi-rail operation (12V rails) – 12V single rail operation ✓ Overclocking key – 3.3V (A) 25 5V (A) 25 12V1 (A) 100 12V2 (A) – 12V3 (A) – 12V4 (A) – 12V5 (A) – 12V6 (A) – -12V (A) 0.5 5Vsb (A) 3 Max. combined power 12V (W) 1200 Max. combined power 12V-2×6 (W) 800 Max. combined power 3.3V 5V (W) 150 Hold-up time at 100% load (ms) 23.5 Hold-up time at 80% load (ms) 30.5 Power good signal (ms) 100 – 150 Cables and connectors Modular cables ✓ Sleeved cables ✓ Flat cables – Maximum cable length (cm) 100 Cable length to motherboard (cm) 60 No. of cables 10 ATX-Motherboard (20 4-pin) 1 P4 4 (CPU) 1 P8 (CPU) 1 P4 (CPU) – 12V-2×6 cables 2 PCI-e 6 2-pin (GPU) 4 PCI-e 6-pin (GPU) – SATA 9 PATA 2 FDD (Floppy) – Protection OTP (over temperature protection) ✓ OCP (over current protection) ✓ OPP (over power protection) ✓ SCP (short circuit protection) ✓ OVP (over Voltage protection) ✓ UVP (under Voltage protection) ✓ SIP (Surge & Inrush protection) ✓ Safety certification BSMI ✓ CB ✓ CCC ✓ CE ✓ cRUus – cTUVus ✓ CU ✓ FCC ✓ RCM ✓ TÜV ✓ UKCA ✓ IRAM – Environmental directives Energy Star 8.0 ErP ✓ WEEE ✓ RoHS ✓ Triman ✓ Scope of delivery Thumb screws – Screws ✓ Cable ties ✓ Velcro cable ties – User manual languages CN, DE, EN, ES, FR, JP, PL, RU, TW, KR OCK slot bracket with switch / OCK jumper – SFX-to-ATX adapter bracket Kategori: Komponente PC, Power Supply
